Welding Fume Extractor
Equipment Description

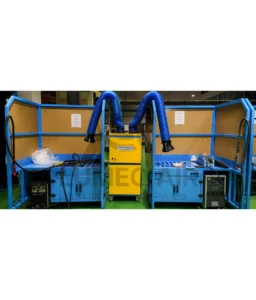

LUMEQ AIR, manufactured by R.K. ENGG. WORKS PVT. LTD., is a trusted Welding Fume Extractor Manufacturer in India, offering high-efficiency industrial air filtration systems designed to capture hazardous welding smoke, fumes, and fine particulates directly at the source. Equipped with a 4-stage filtration system comprising a Pre Filter, HEPA Filter, Activated Charcoal Filter, and Spark Arrestor, these systems help improve workplace air quality, enhance operator safety, and maintain a cleaner industrial environment. Available in single-arm and double-arm extraction configurations to meet diverse welding application requirements.
Process Flow
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Dry fume extraction and filtration unit |
| Airflow Capacity (CMH) | 1200 – 5000 |
| Static Pressure (Pa) | 1500 – 3000 |
| Fume Capture Method | Suction arm/hose/hood |
| Filtration Stages | Multi-stage (Pre/Charcoal/HEPA/Spark Arrestor) |
| Filtration Efficiency | Up to 99.99% |
| Motor Power (HP) | 1.5 – 5 |
| Mounting Type | Portable / Fixed |
| Application | Welding |
APPLICATION
