Welding Fume Extractor

Equipment Description

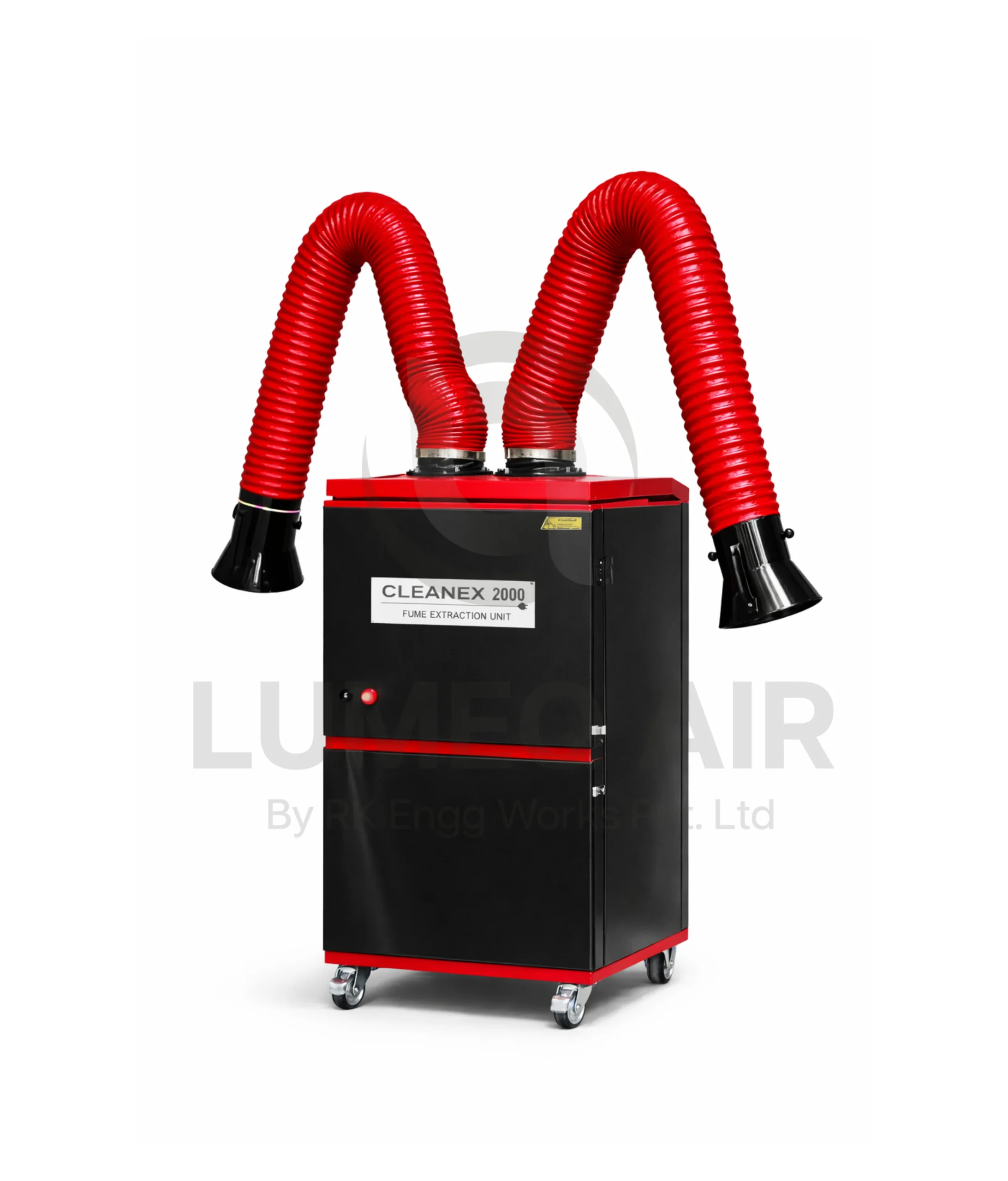

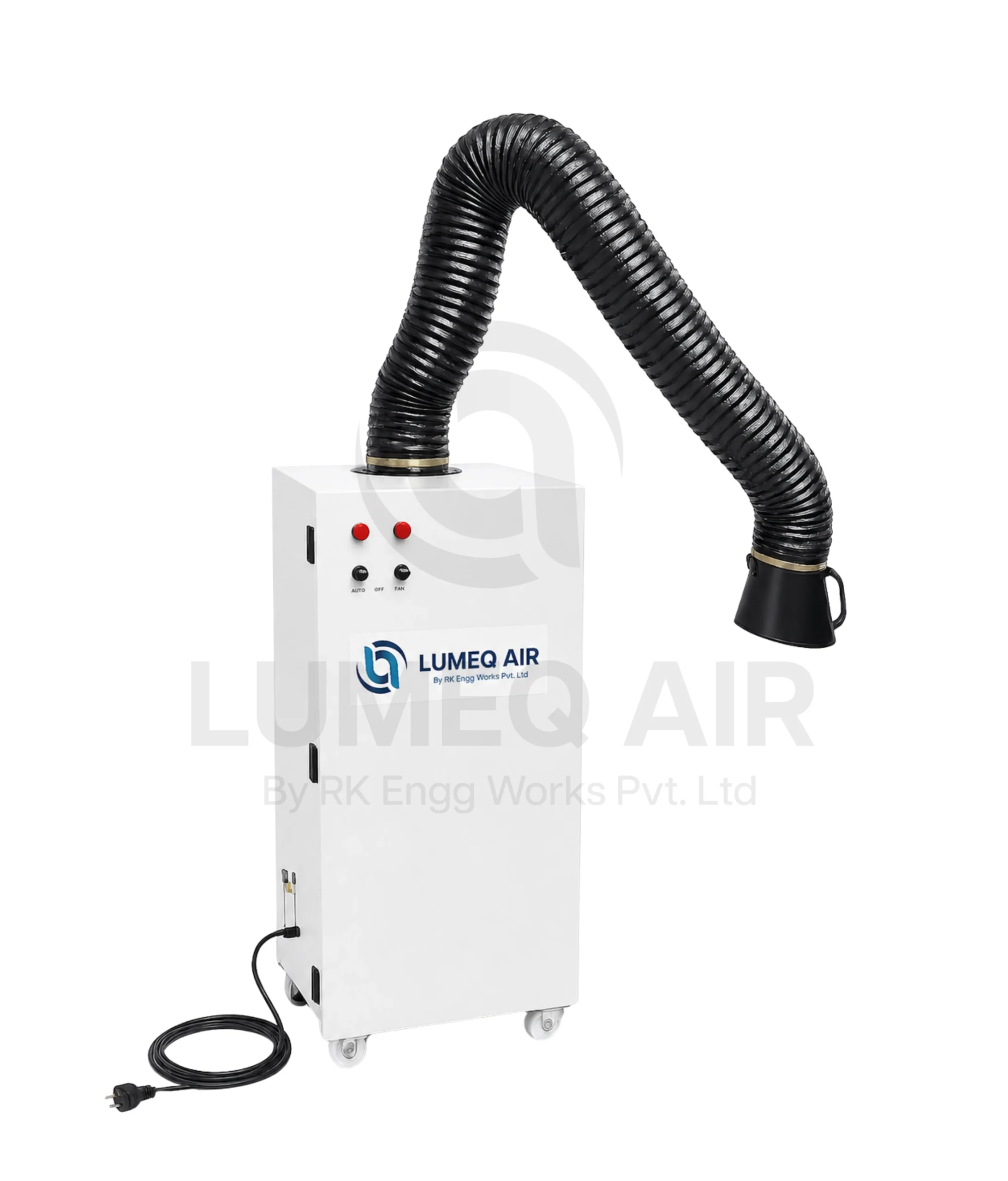

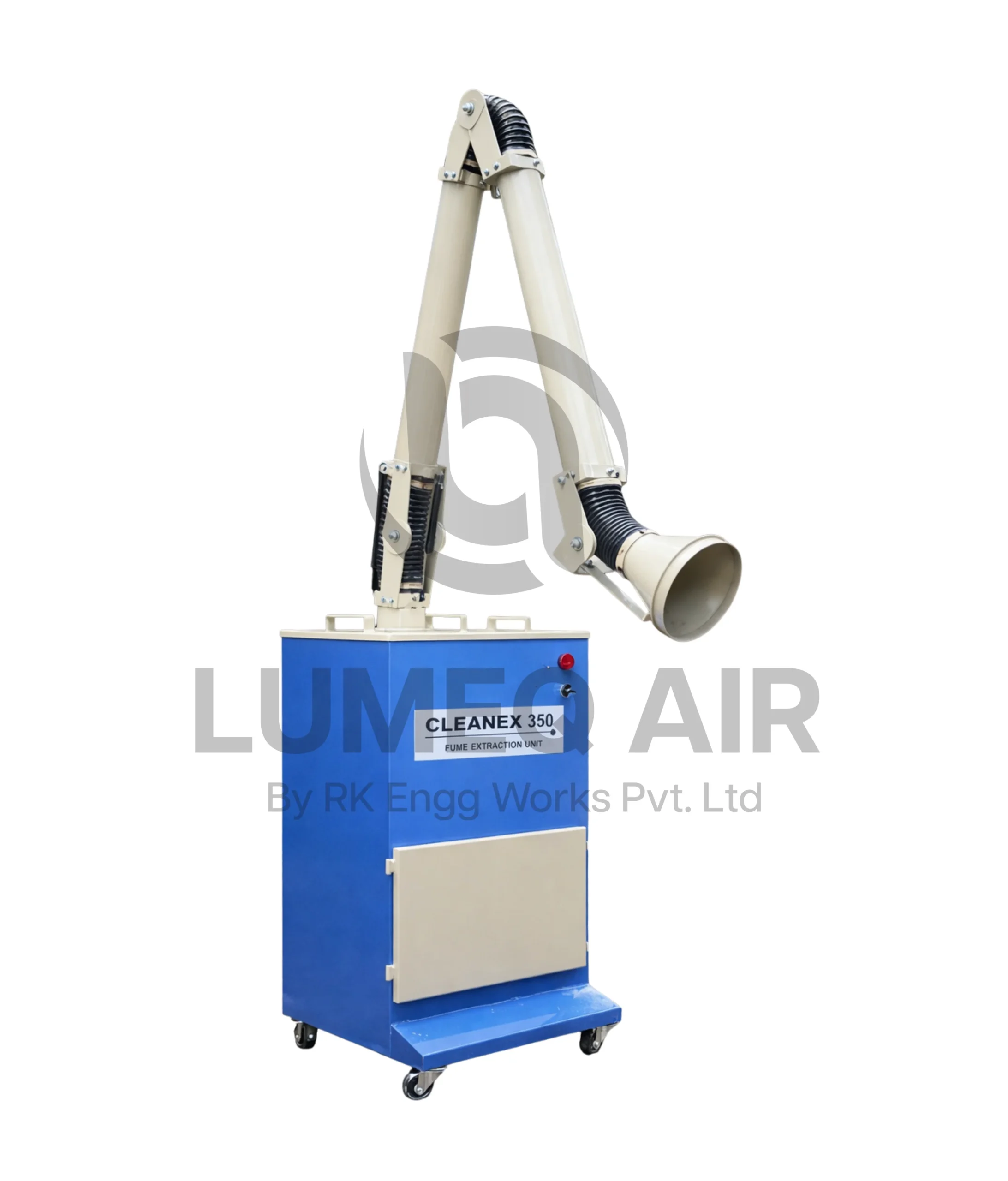

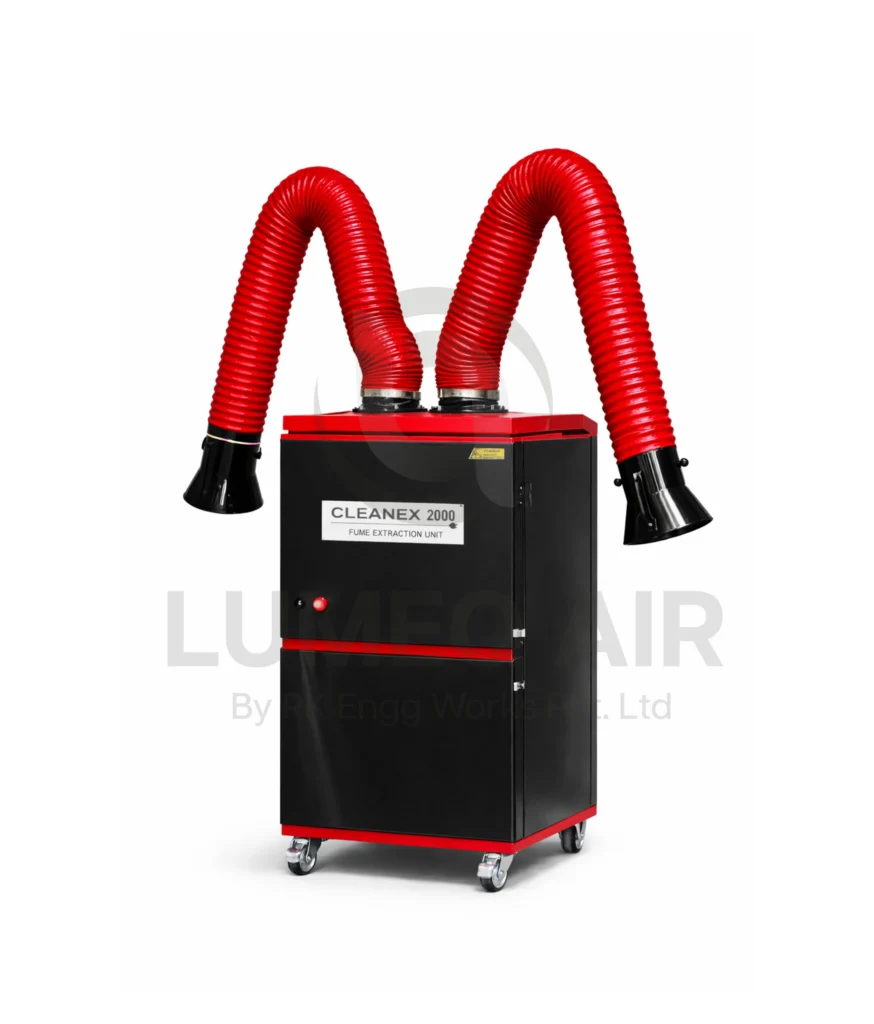

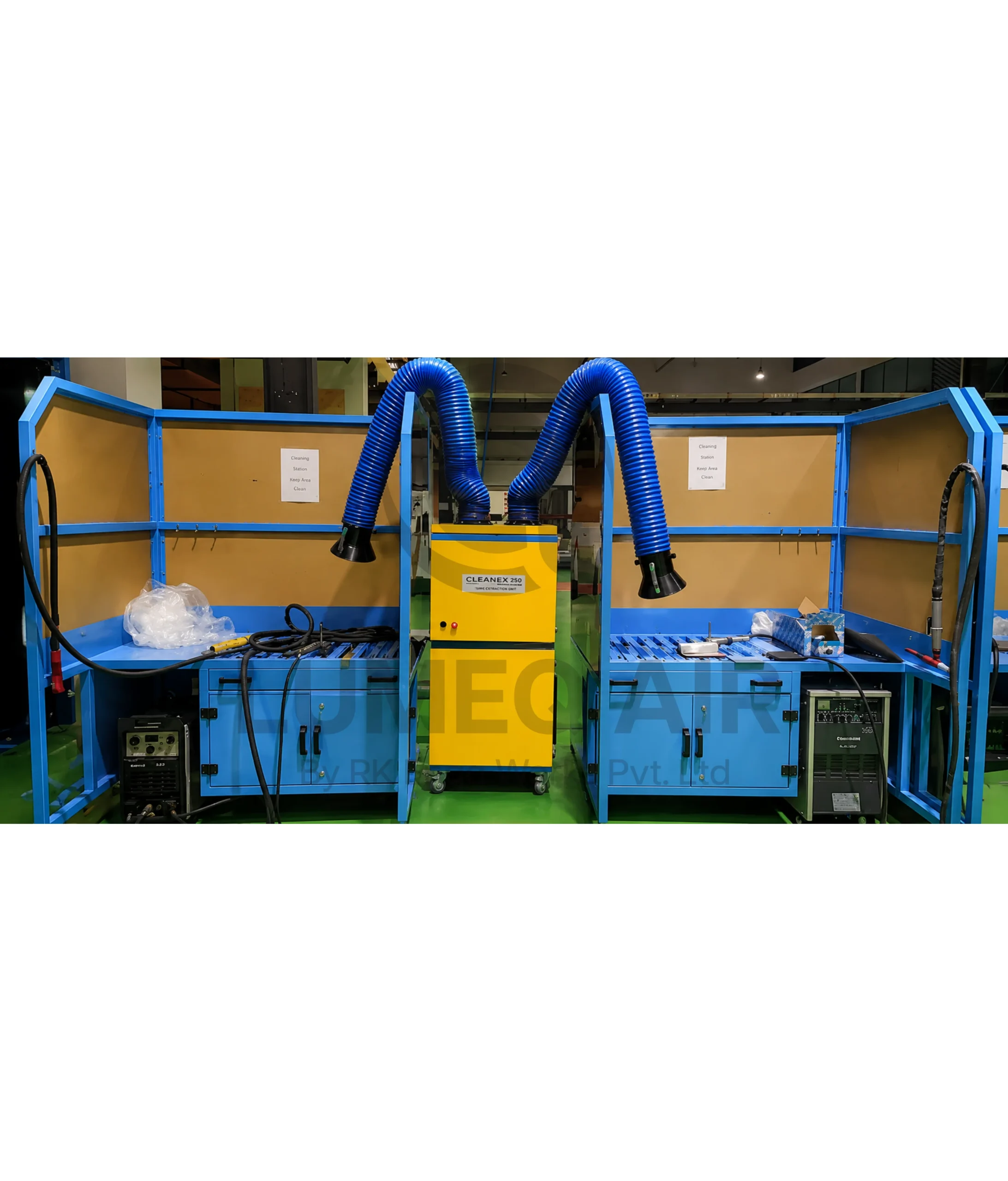

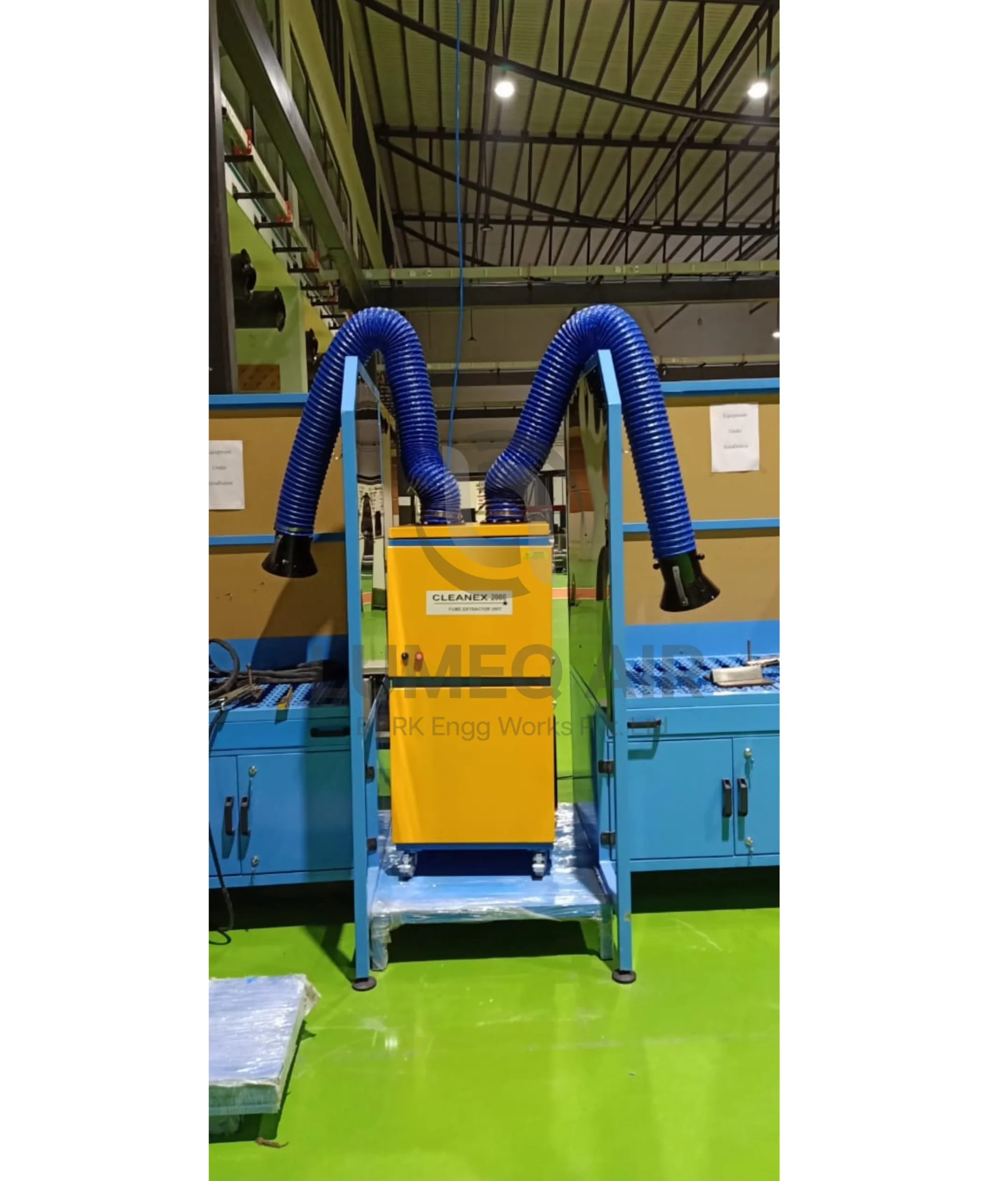

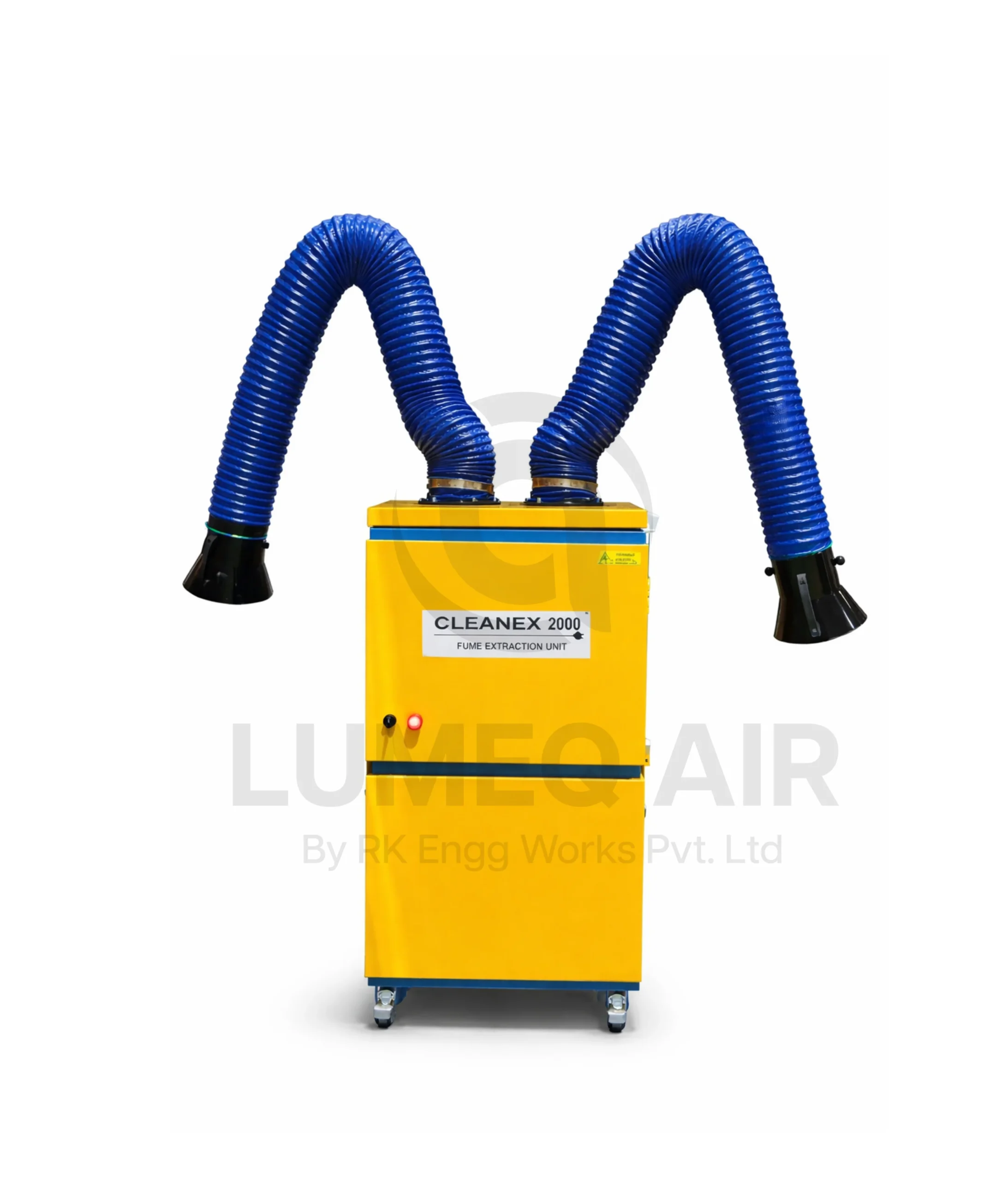

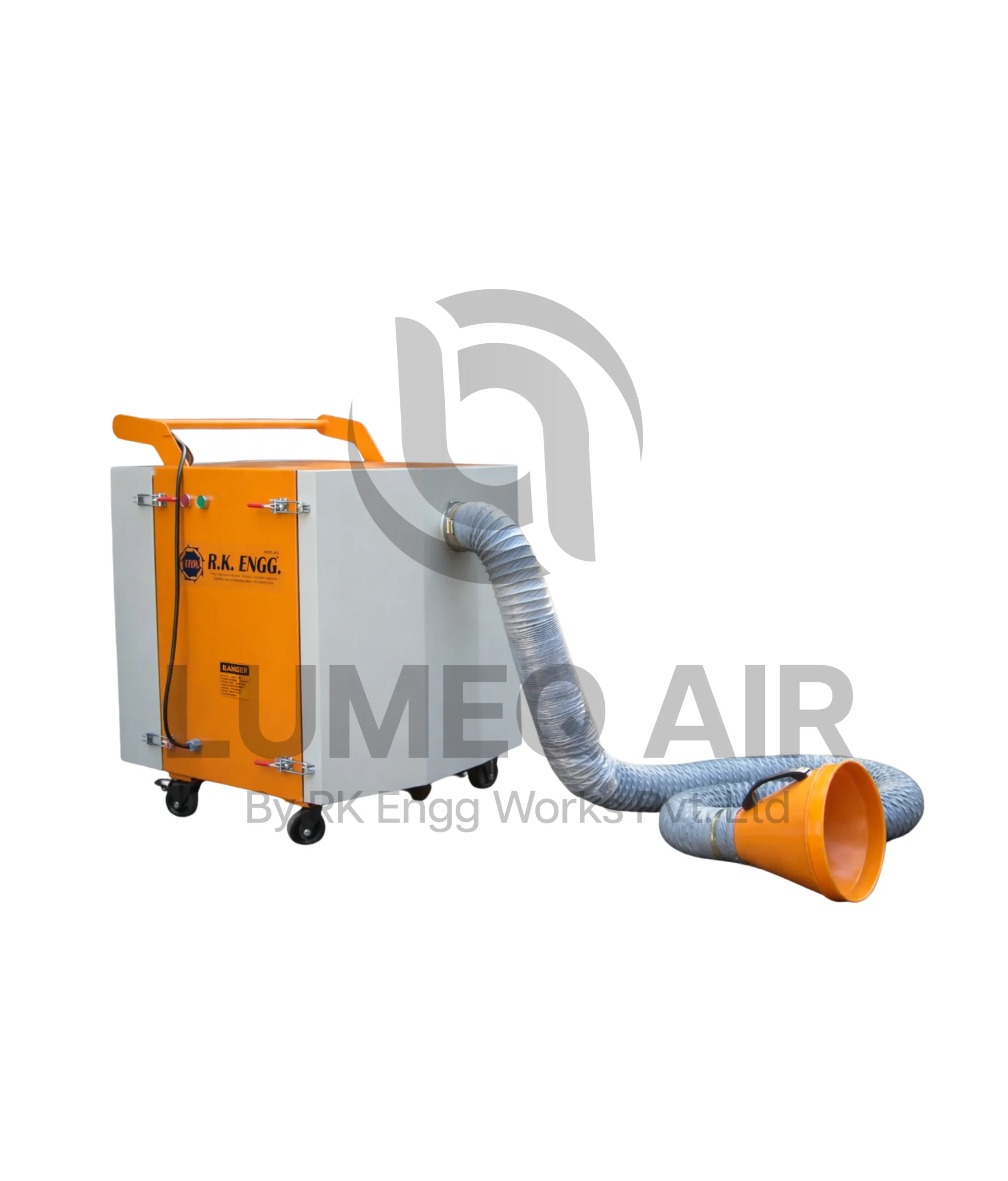

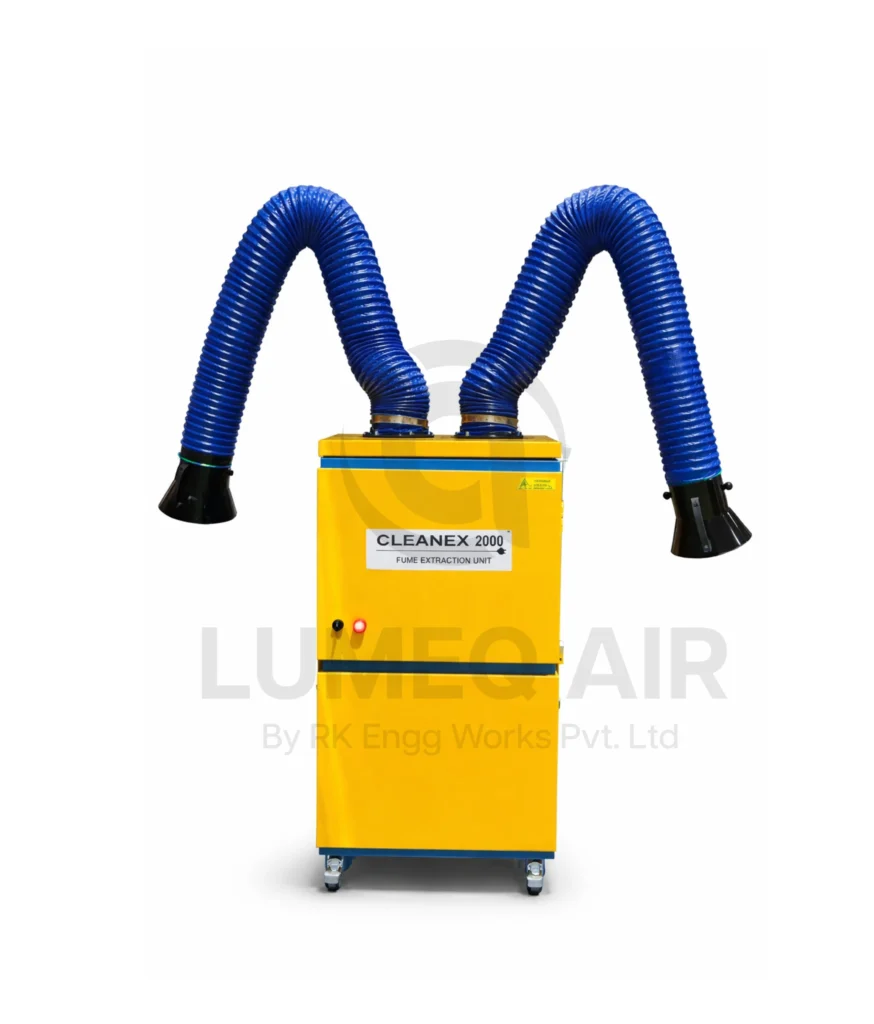

LUMEQ AIR Welding Fume Extractors, manufactured by R.K. ENGG. WORKS PVT. LTD., are high-efficiency industrial air filtration systems designed to capture hazardous welding smoke, fumes, and fine particulates directly at the source. Equipped with a 4-stage filtration process including Pre Filter, HEPA Filter, Activated Charcoal Filter, and Spark Arrestor, these systems improve workplace safety, air quality, and operator protection. Available in single-arm and double-arm extraction configurations.

Process Flow

  1. Welding fumes are captured through extraction arms.
  2. Polluted air enters the filtration chamber.
  3. Spark Arrestor traps sparks and hot particles.
  4. Pre Filter captures coarse dust contaminants.
  5. HEPA and Charcoal filters remove fine fumes and gases.
  6. Clean air is safely discharged from the system.

Technical Specifications

Parameter Specification
Type Dry fume extraction and filtration unit
Airflow Capacity (CMH) 1200 – 5000
Static Pressure (Pa) 1500 – 3000
Fume Capture Method Suction arm/hose/hood
Filtration Stages Multi-stage (Pre/Charcoal/HEPA/Spark Arrestor)
Filtration Efficiency Up to 99.99%
Motor Power (HP) 1.5 – 5
Mounting Type Portable / Fixed
Application Welding

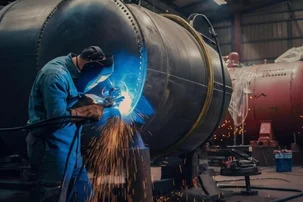

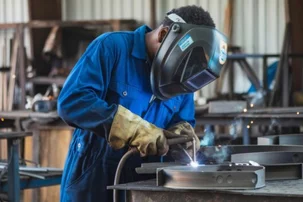

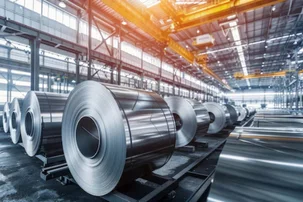

APPLICATION
