Soldering Fume Extractor

Equipment Description

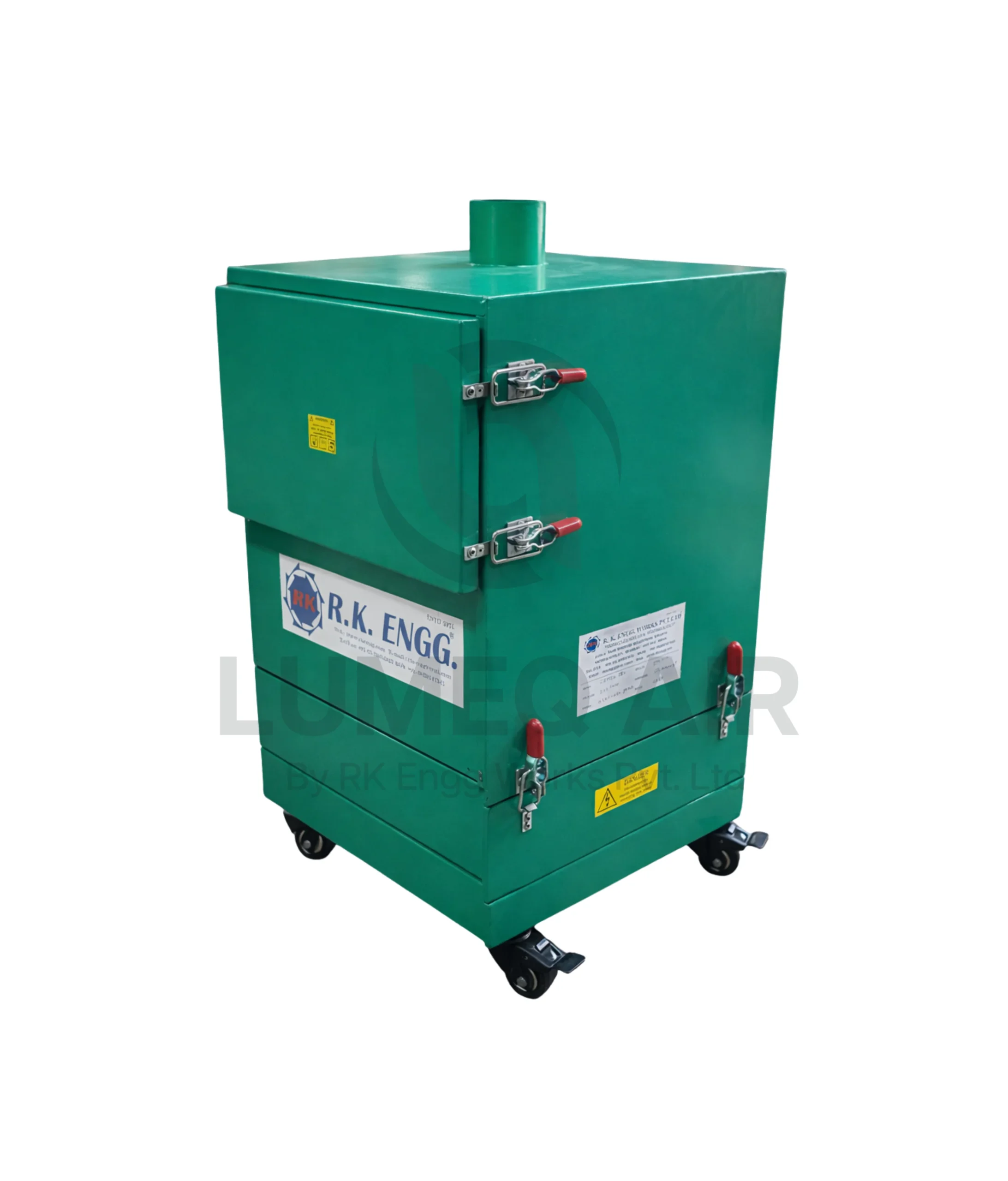

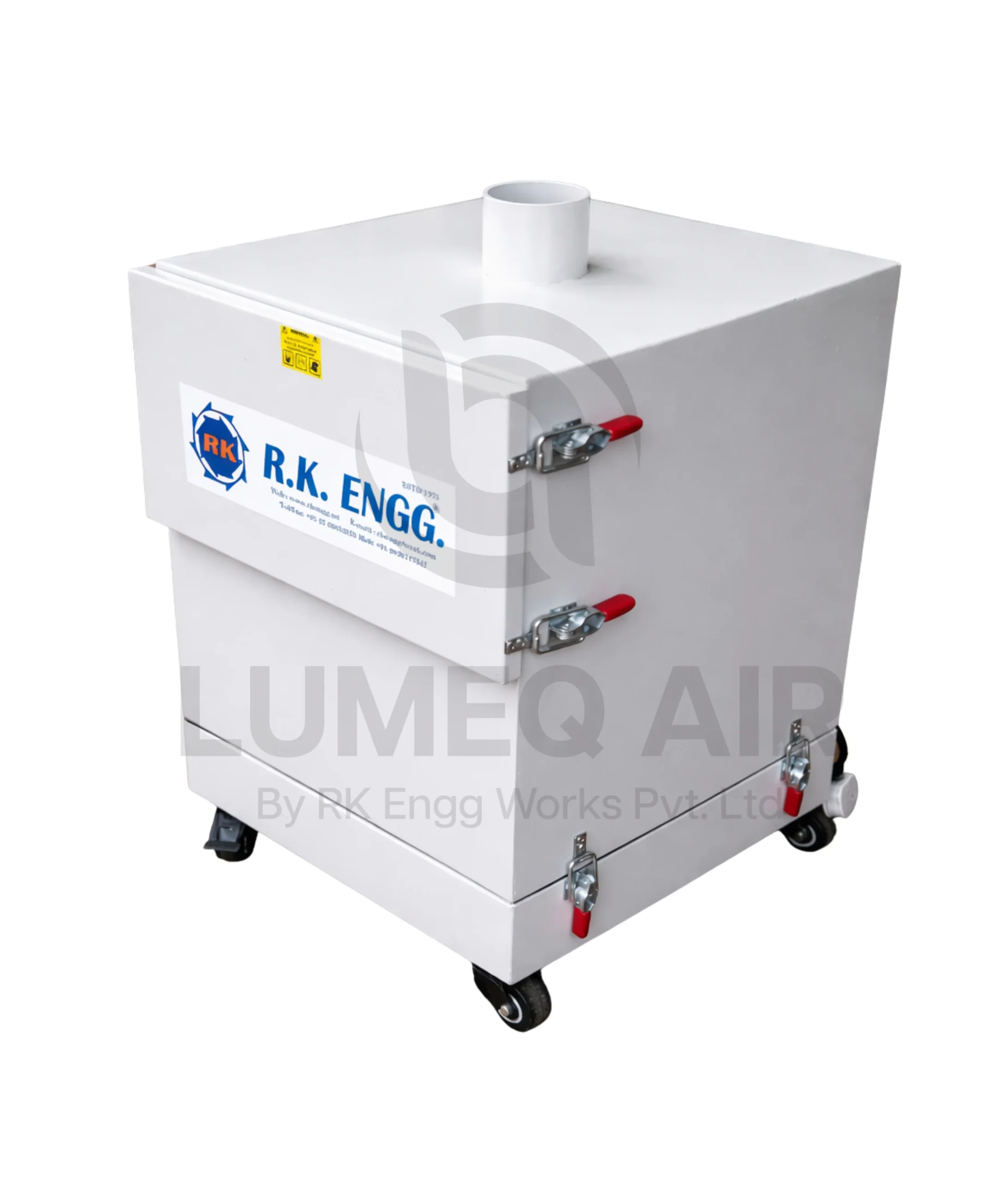

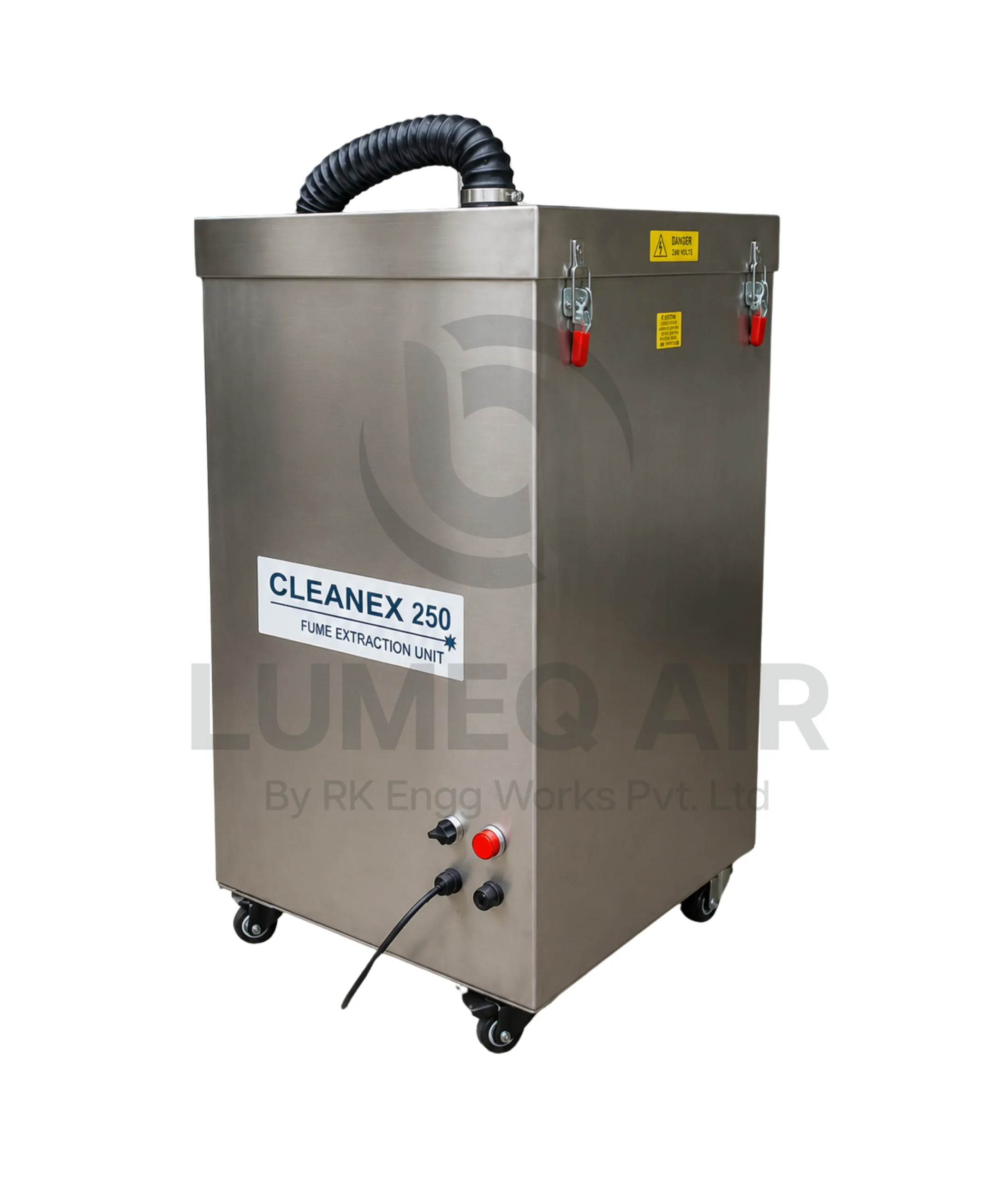

LUMEQ AIR Soldering Fume Extractors, manufactured by R.K. ENGG. WORKS PVT. LTD., are precision air filtration systems designed to remove harmful soldering fumes, smoke, and flux vapors generated during electronic assembly processes. Featuring a 4-stage filtration system comprising Pre Filter, HEPA Filter, Activated Charcoal Filter, and Spark Arrestor, these extractors ensure cleaner air, operator safety, and improved indoor air quality. Available in single-arm and double-arm models.

Process Flow

  1. Soldering fumes are captured near the source.
  2. Contaminated air enters the extraction system.
  3. Spark Arrestor filters hot particles if present.
  4. Pre Filter removes larger contaminants.
  5. HEPA and Charcoal filters purify fine fumes and odors.
  6. Clean air is discharged back into the workspace.

GET A QUOTE

Technical Specifications

Parameter Specification
Type Dry fume extraction and filtration unit
Airflow Capacity (CMH) 100 – 500
Static Pressure (Pa) 800 – 1500
Fume Capture Method Suction arm/hose/hood
Filtration Stages Multi-stage (Pre/Charcoal/HEPA)
Filtration Efficiency Up to 99.99%
Motor Power (HP) 0.1 – 0.5
Mounting Type Tabletop
Application Electronics

APPLICATION

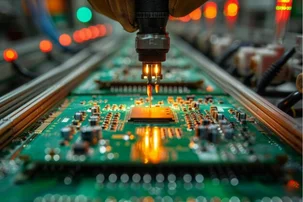

PCB Assembly Lines
Electronics Manufacturing
Soldering Workstations
Mobile Repair Facilities
Laboratory Applications

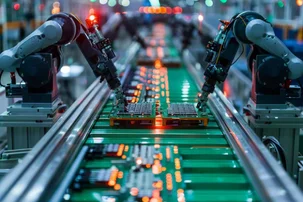

Electrical Component Manufacturing

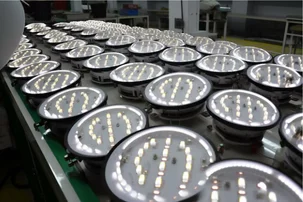

LED Assembly Units
R&D Centers
Educational Electronics Labs
Precision Instrument Manufacturing
