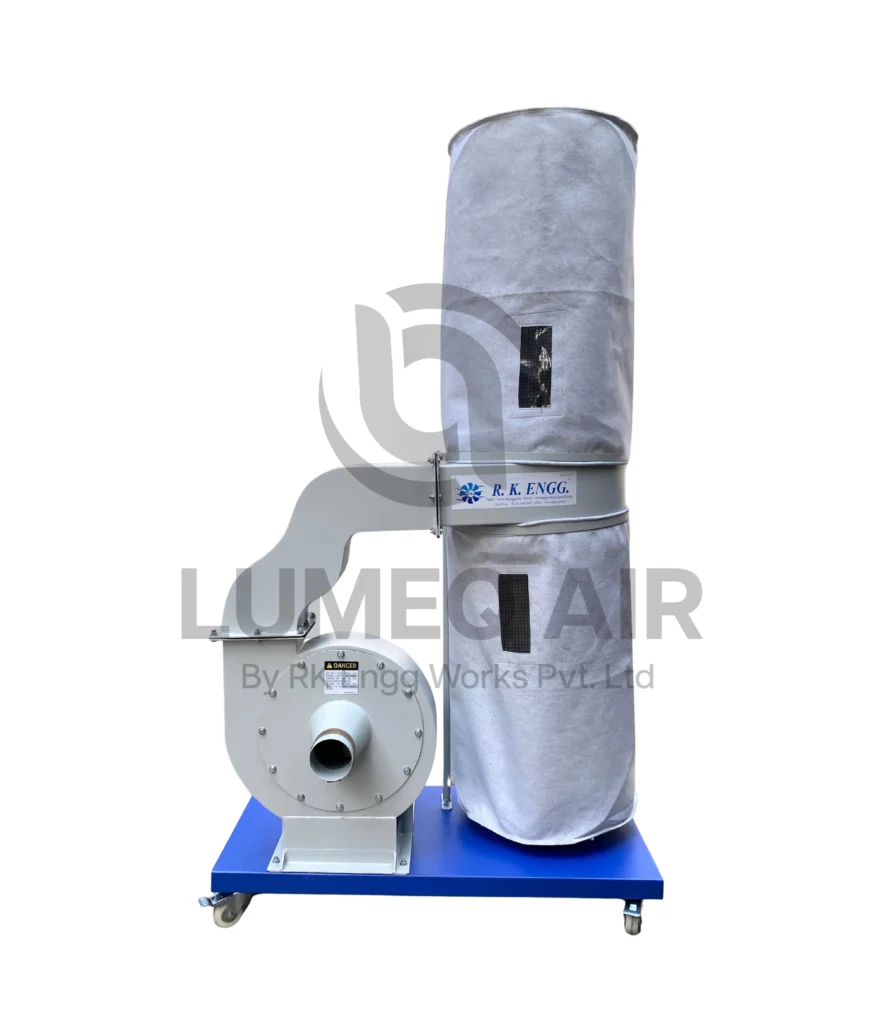

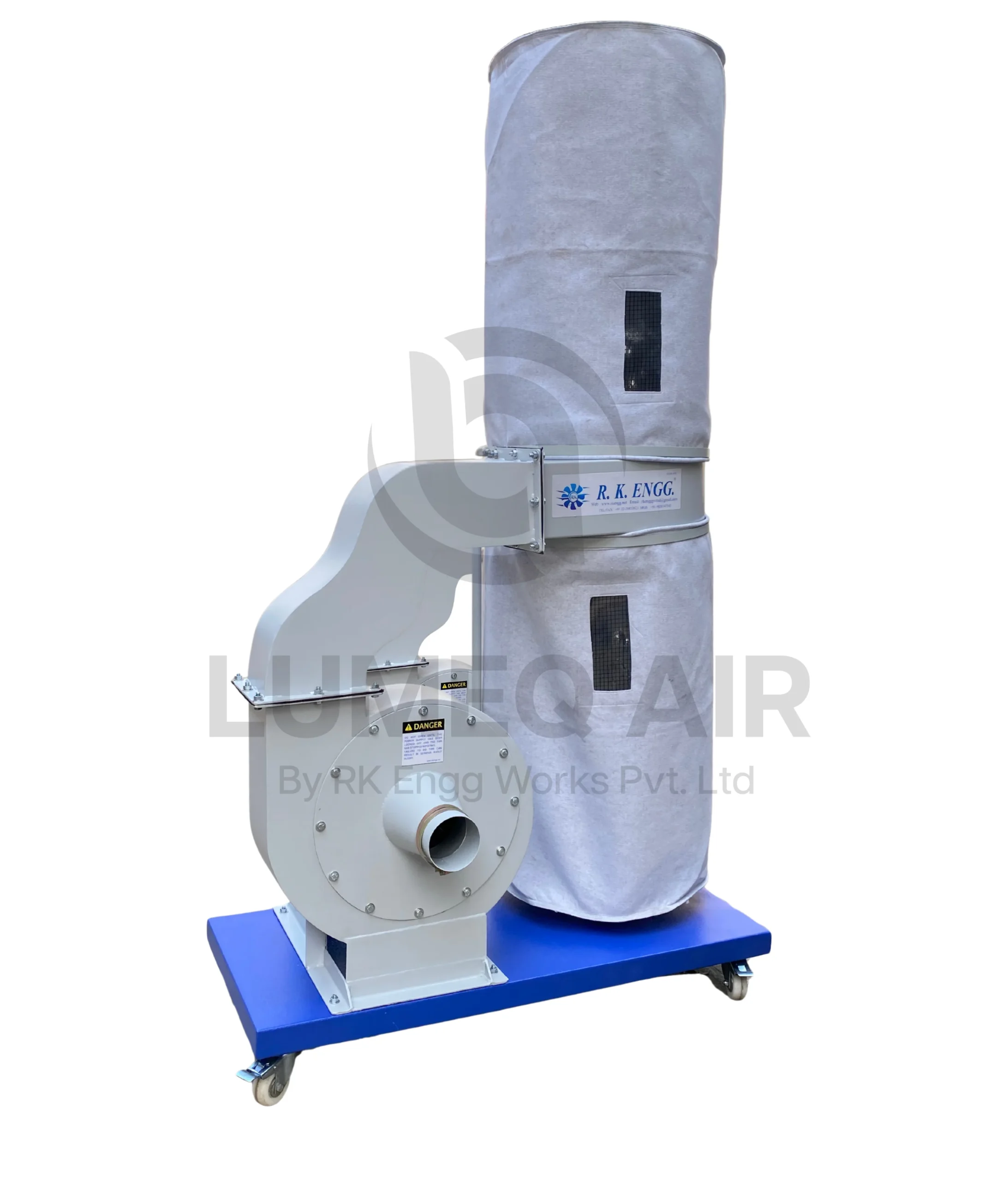

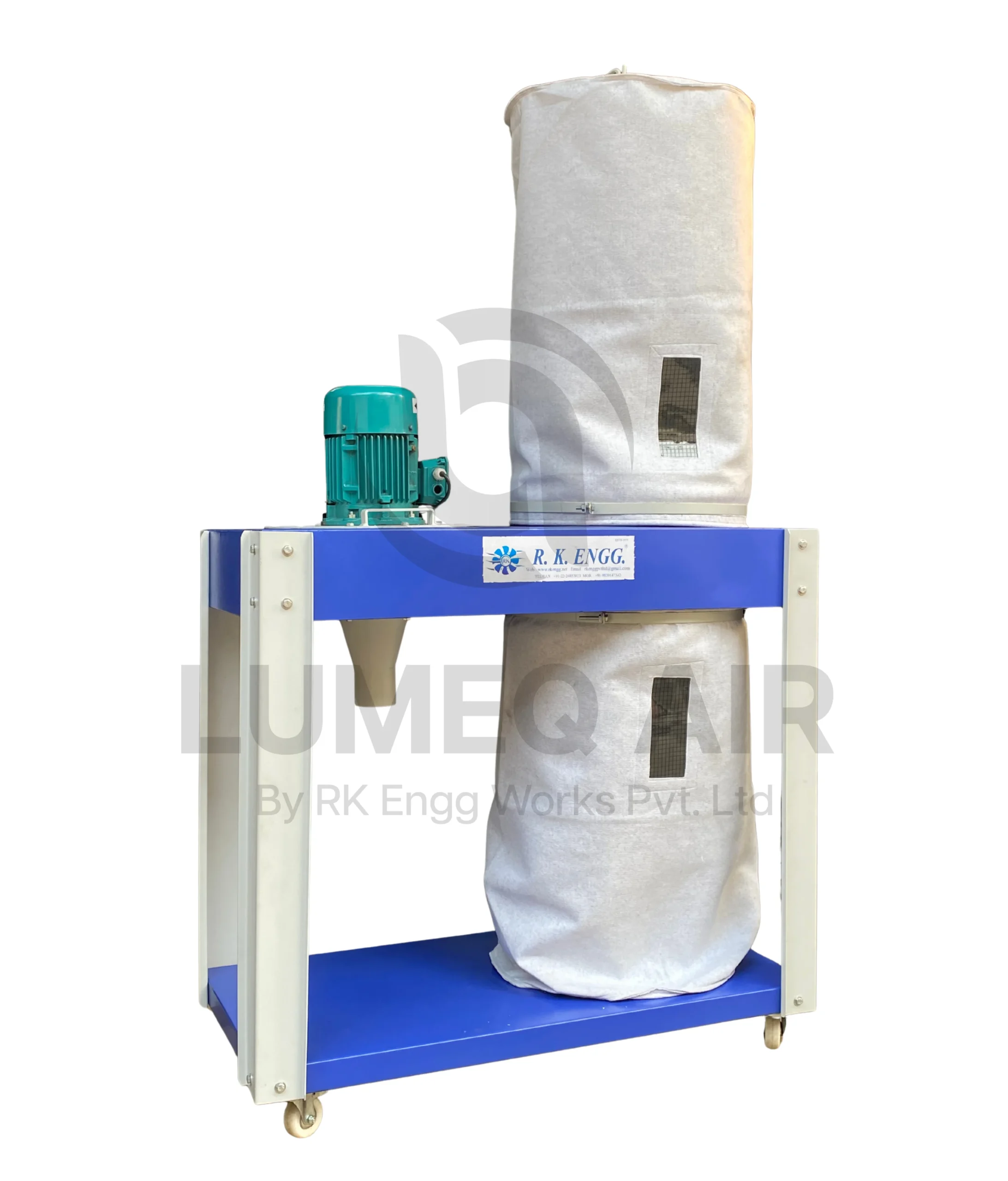

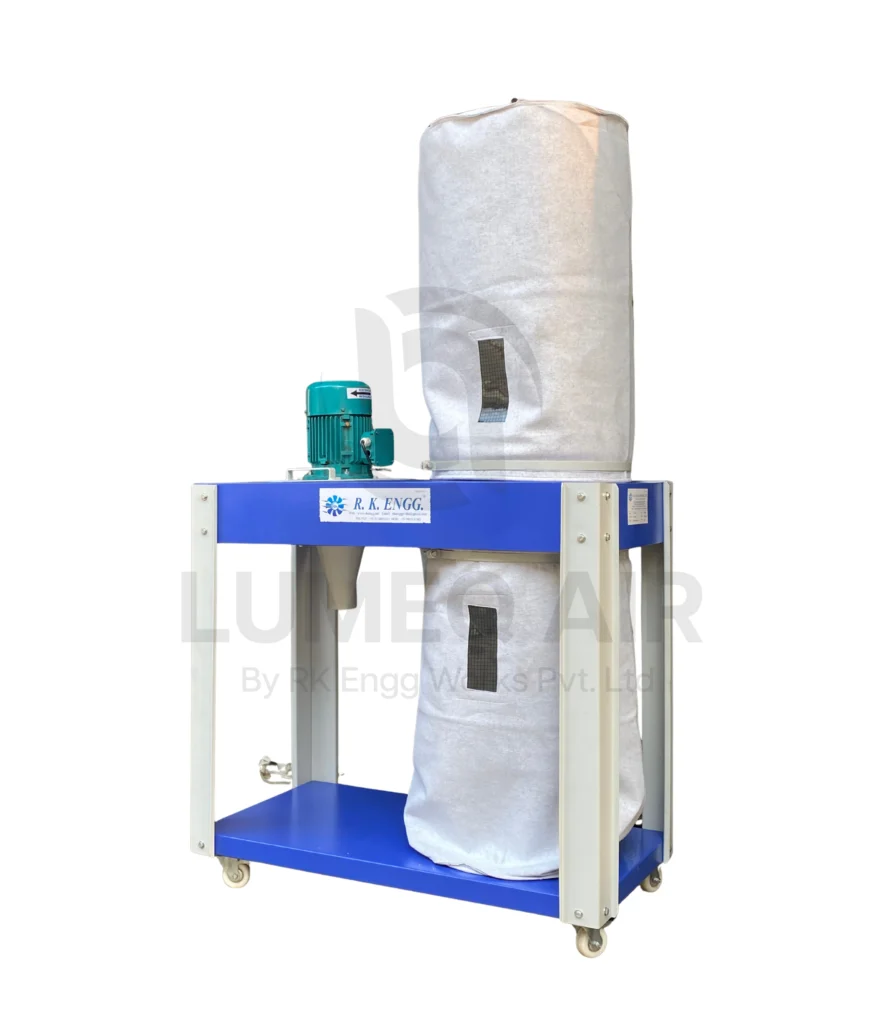

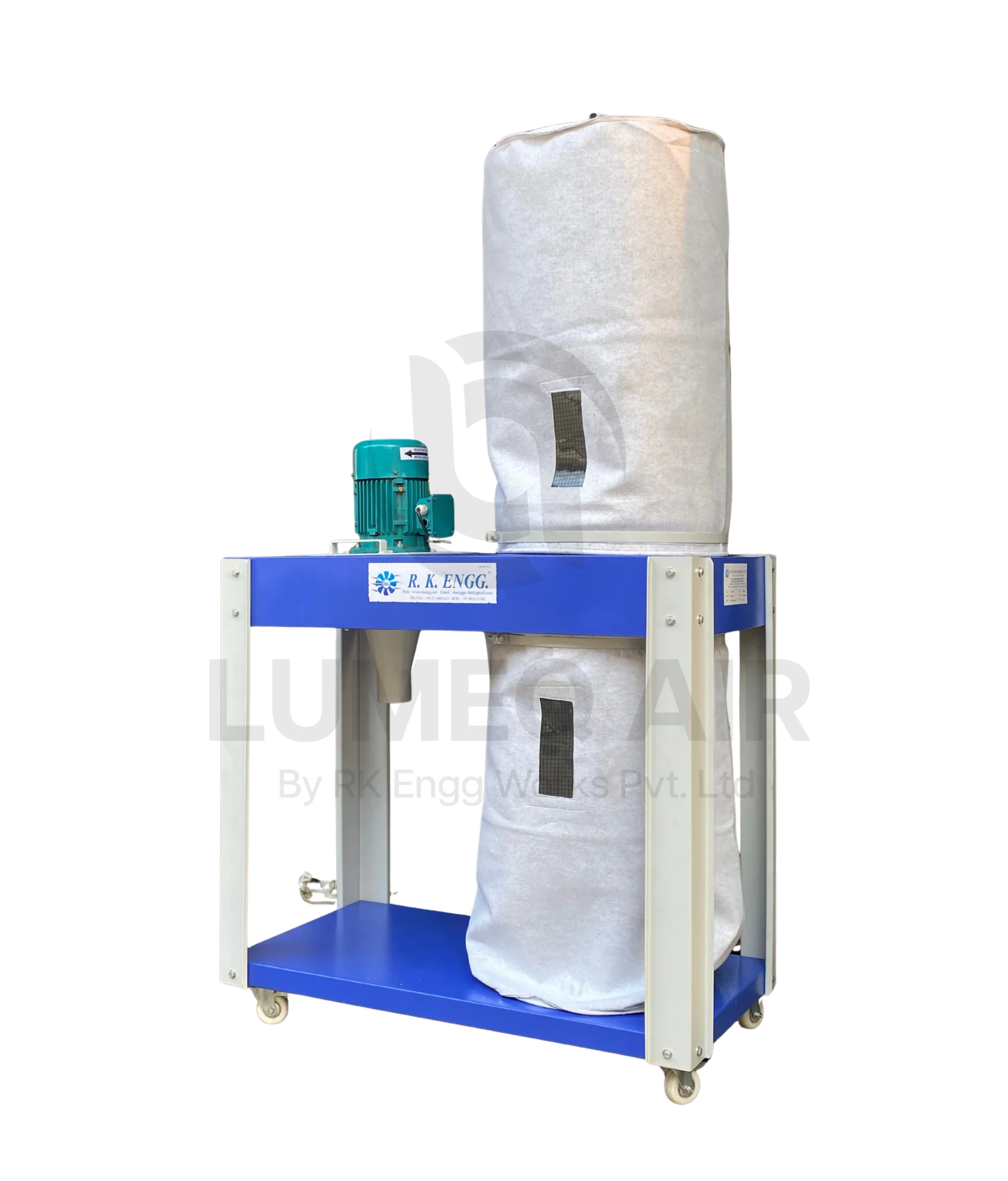

Single Bag Woodworking Dust Collector

Equipment Description

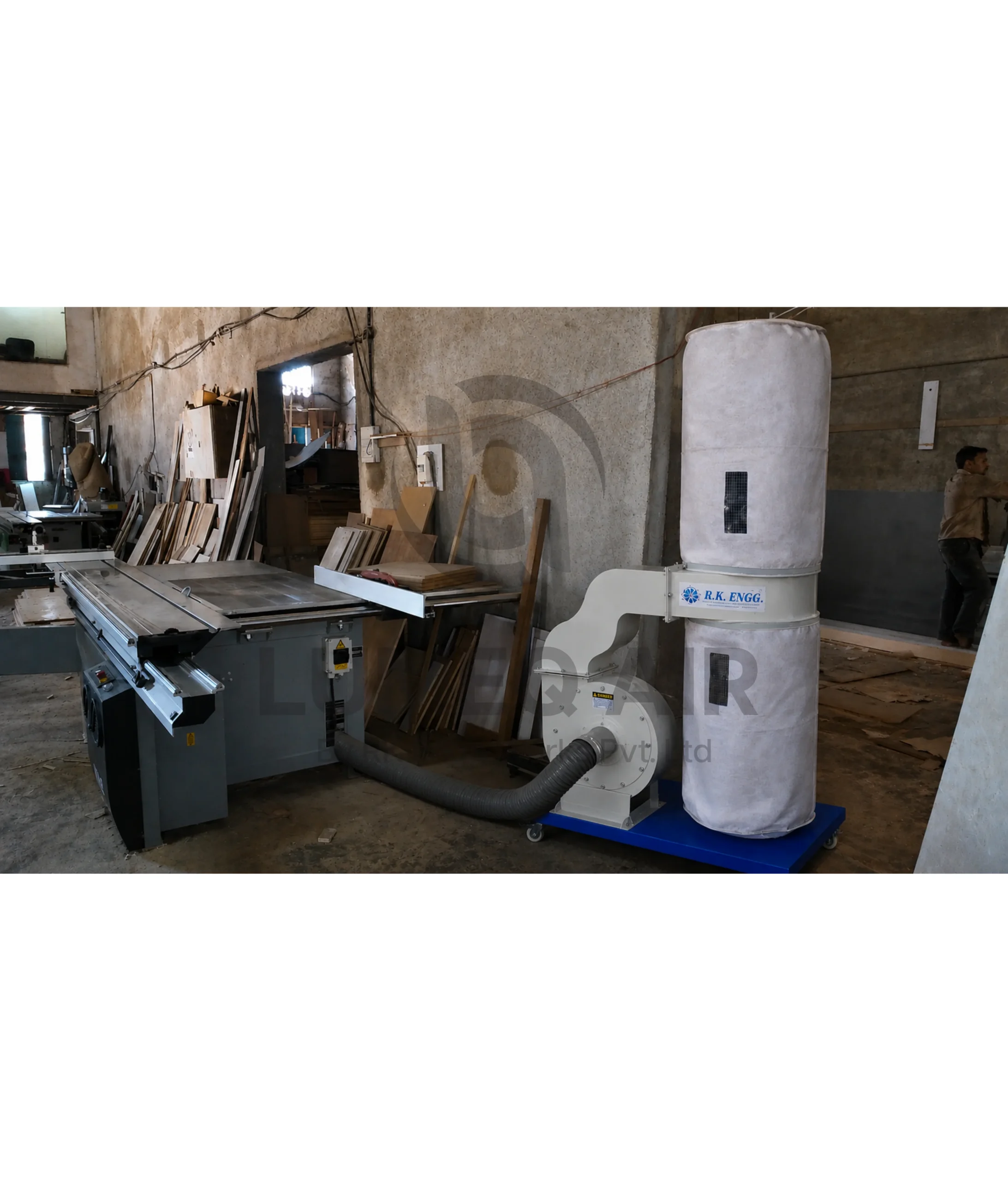

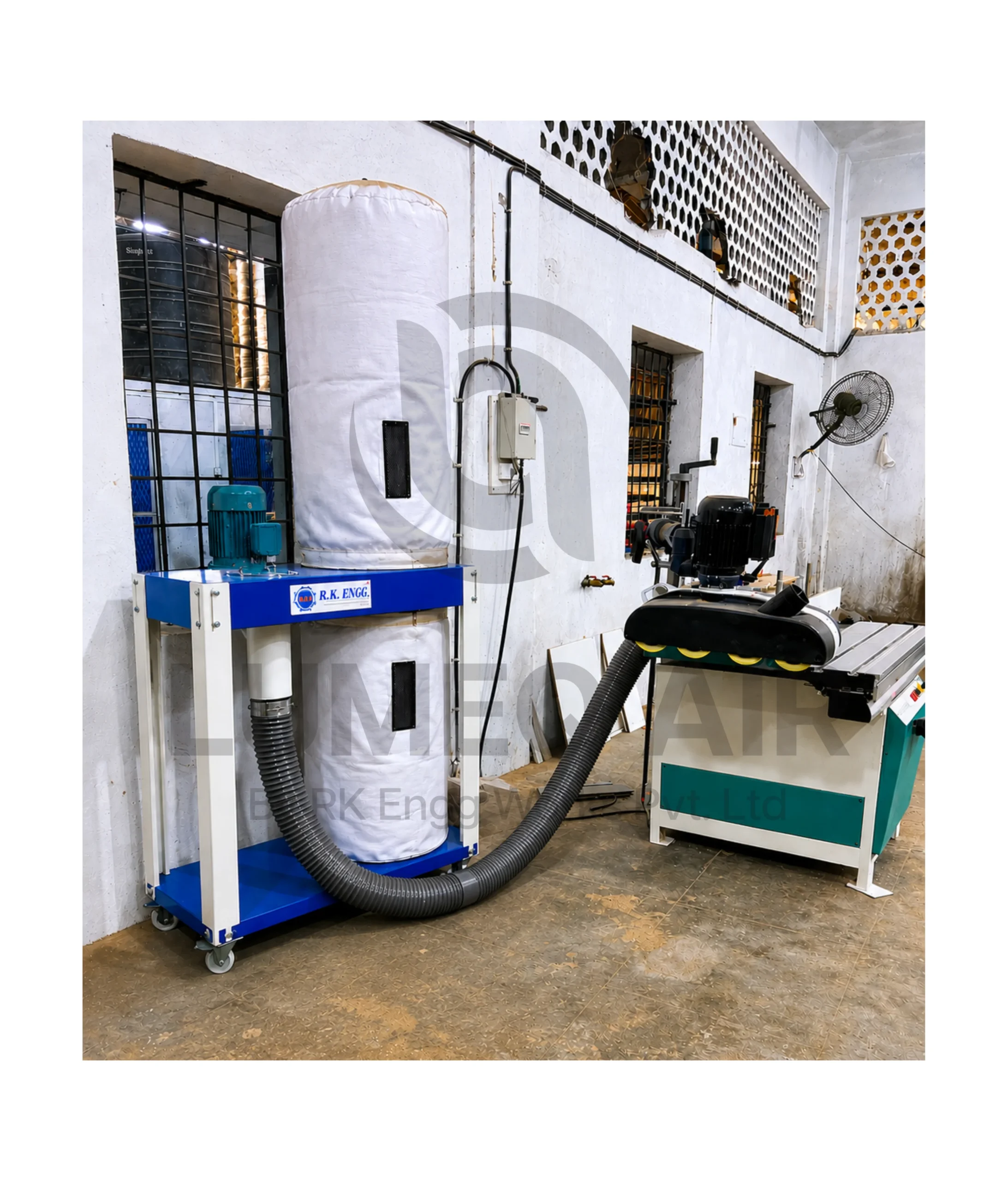

LUMEQ AIR Single Bag Woodworking Dust Collectors, manufactured by R.K. ENGG. WORKS PVT. LTD., are compact and economical dust extraction systems designed for localized dust collection applications. Equipped with specially selected fire-retardant filter bags, these units offer enhanced resistance to spark-induced ignition compared to conventional collection bags, improving workplace safety while efficiently capturing airborne dust generated by woodworking, grinding, polishing, and fabrication processes.

Process Flow

  1. Dust-contaminated air enters the collector.
  2. Air passes through the filter bag.
  3. Dust particles are retained on the fabric surface.
  4. Clean air exits the filtration chamber.
  5. Dust accumulates within the collection area.
  6. Filter bag is cleaned or replaced periodically.

GET A QUOTE

Technical Specifications

Parameter Specification
Airflow Capacity (CMH) 500 – 3000
Filter Media Polyester / Non woven / Anti-static
Filtration Efficiency (%) Up to 99%
Filter Type Bag
Filtration Mechanism Depth Filtration
Cleaning Mechanism Manual Shaking
Dust Discharge System Bottom Collection Bag
Motor Power (HP) 1 – 3
Mounting Type Portable (Trolley Mounted)
Application Small workshops, wood working

APPLICATION

Bench Grinding Machines
Buffing Machines
Small Woodworking Machines
Polishing Stations
Cutting Machines
Training Workshops
Repair Facilities
Educational Institutes
Small Fabrication Units
Packaging Operations
