Portable Fume Extractor

Equipment Description

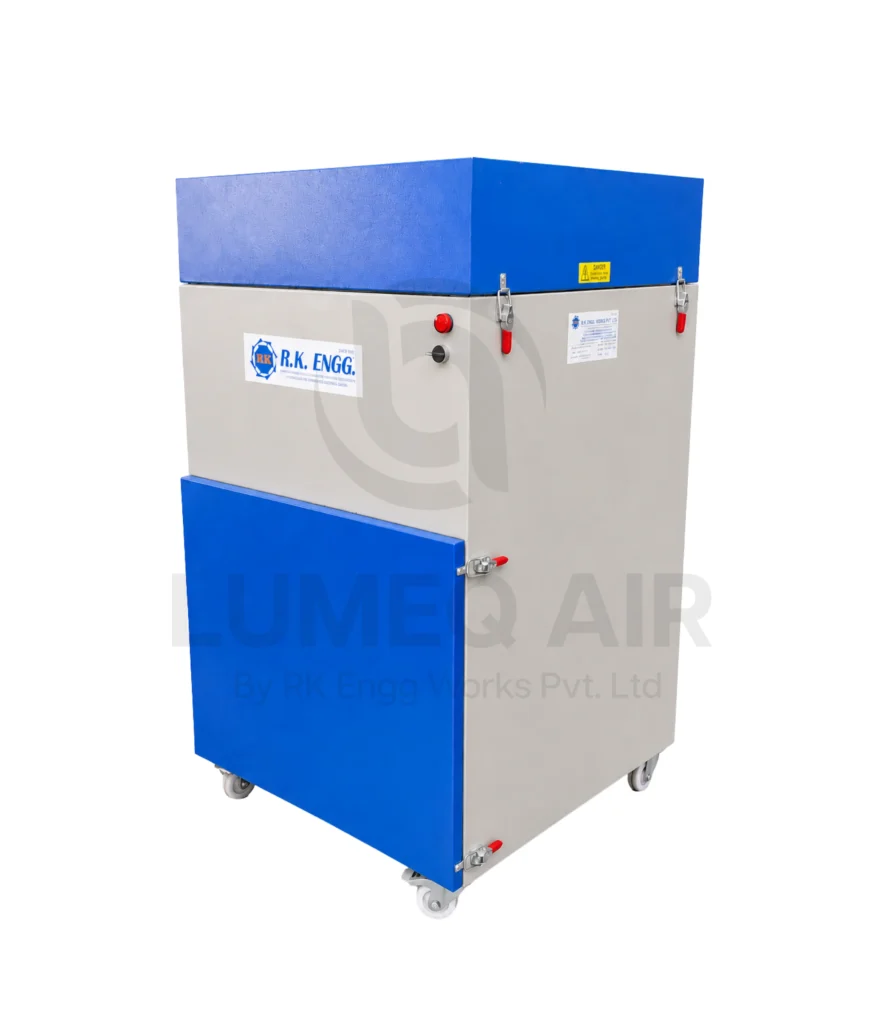

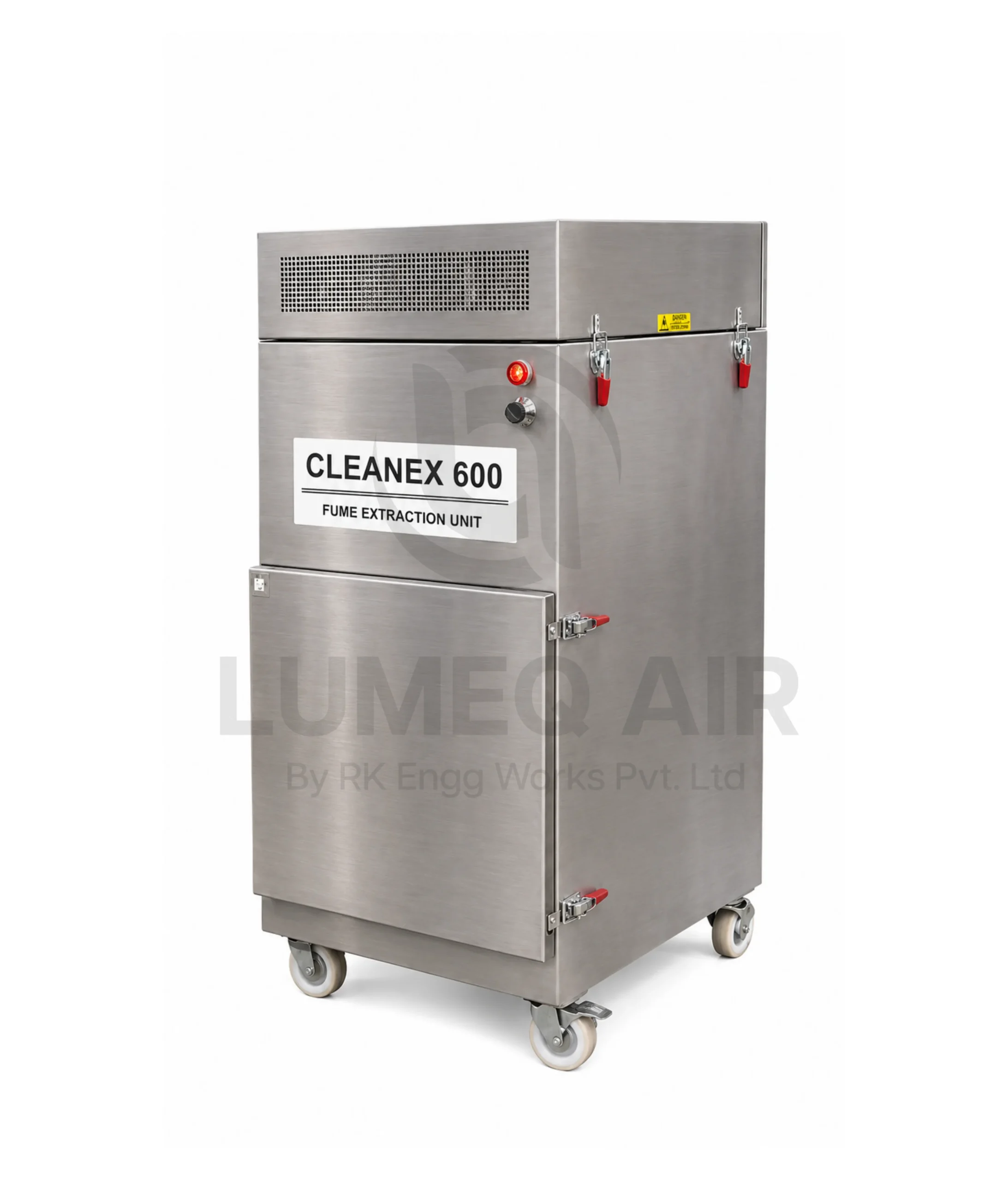

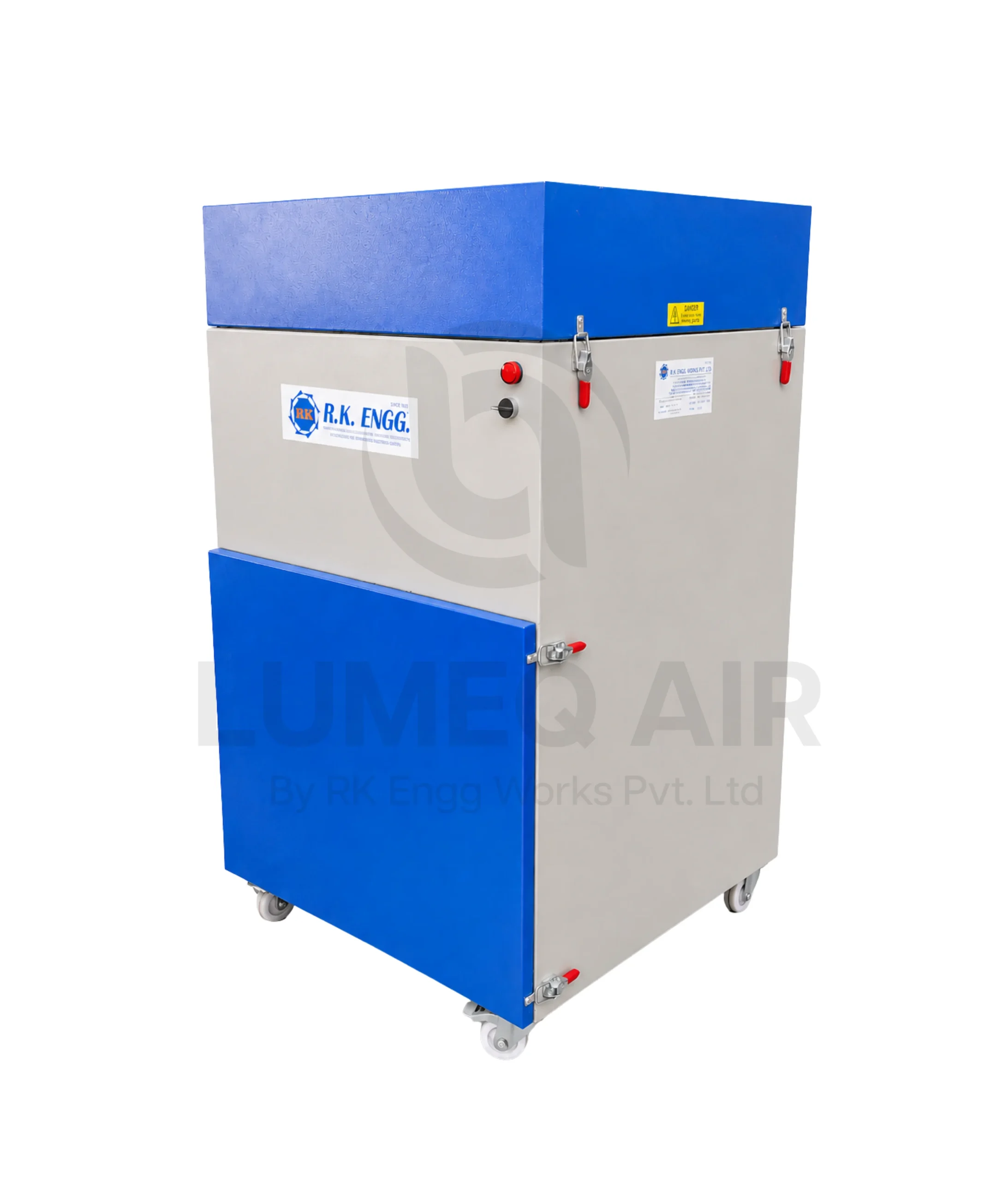

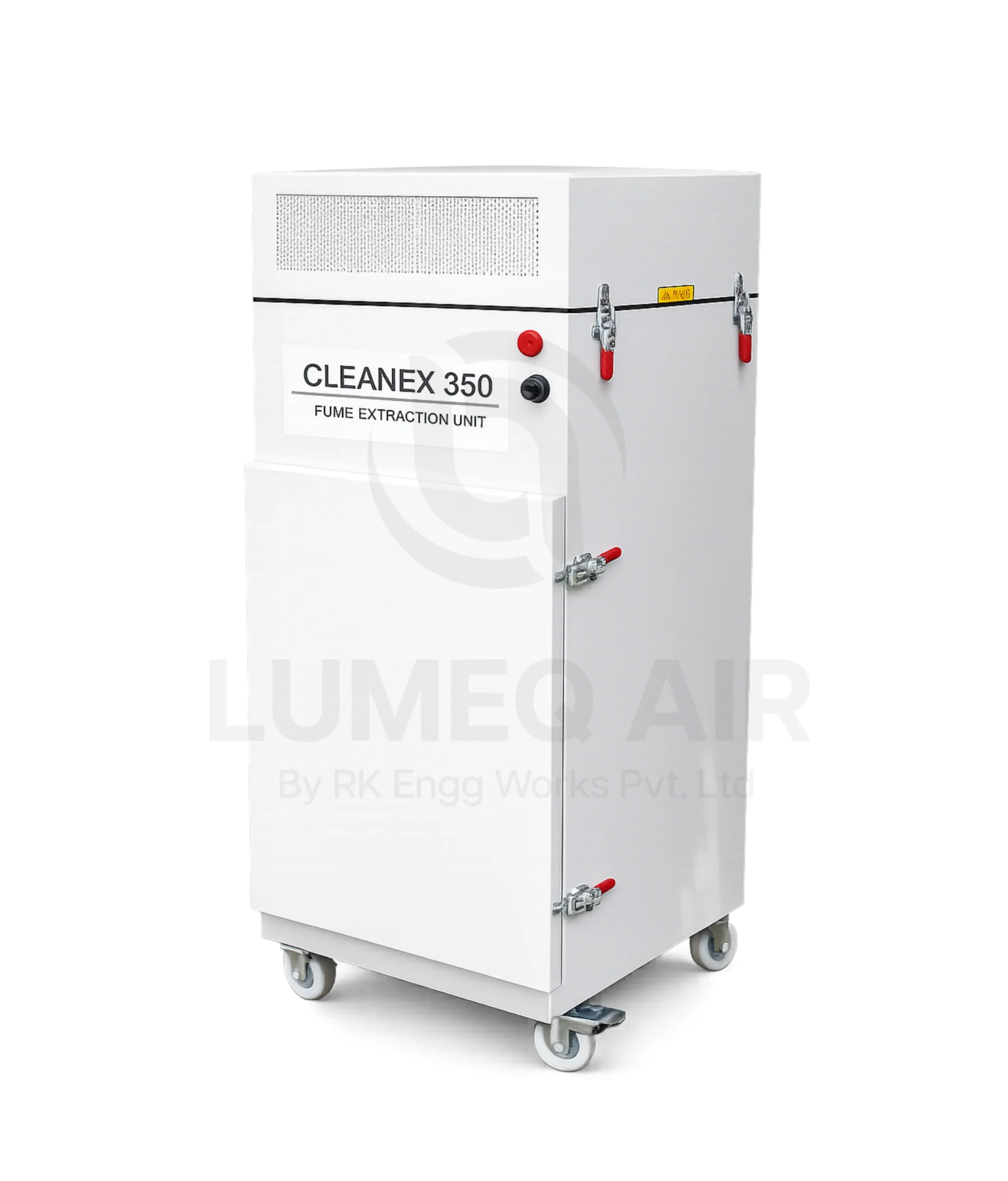

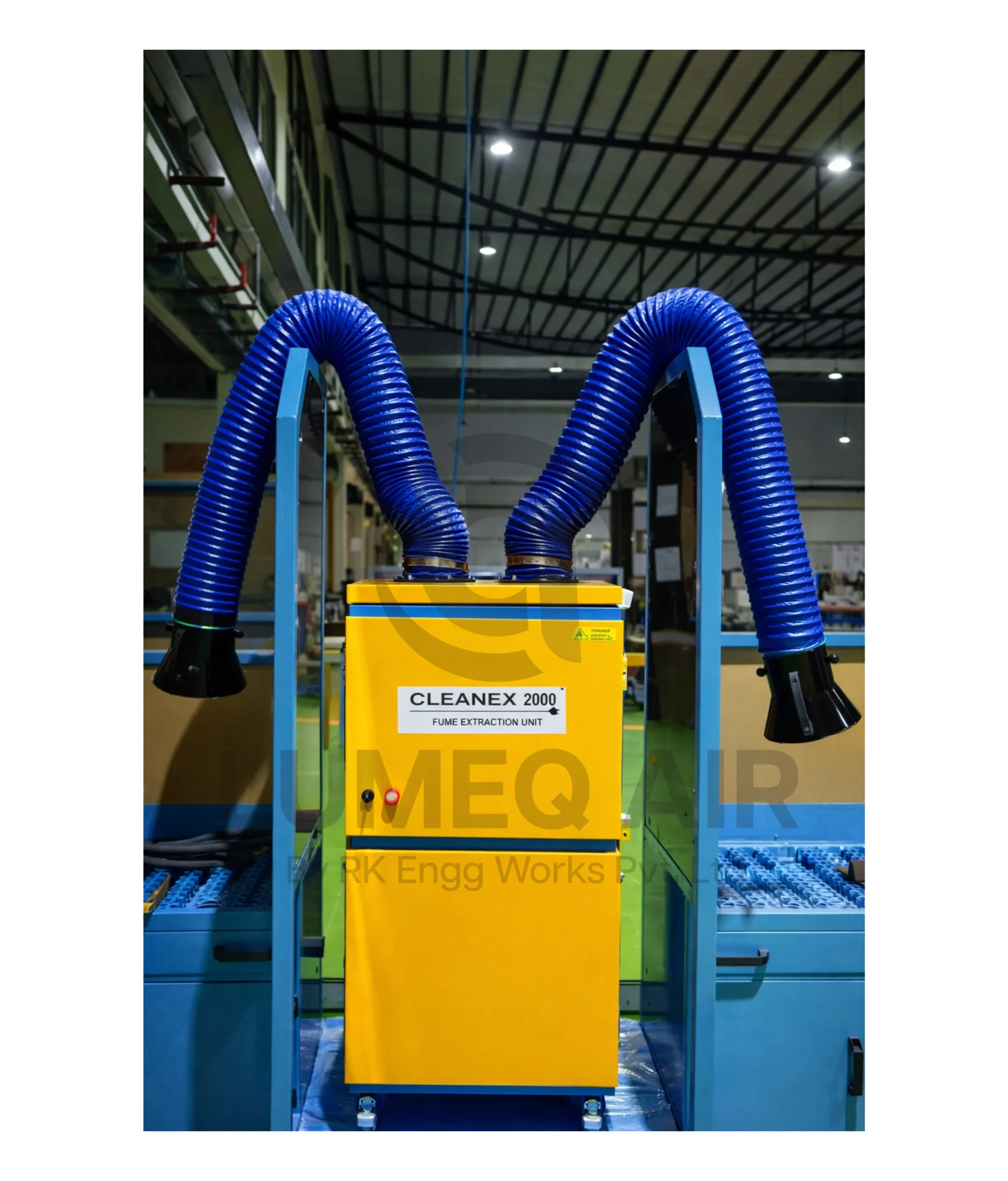

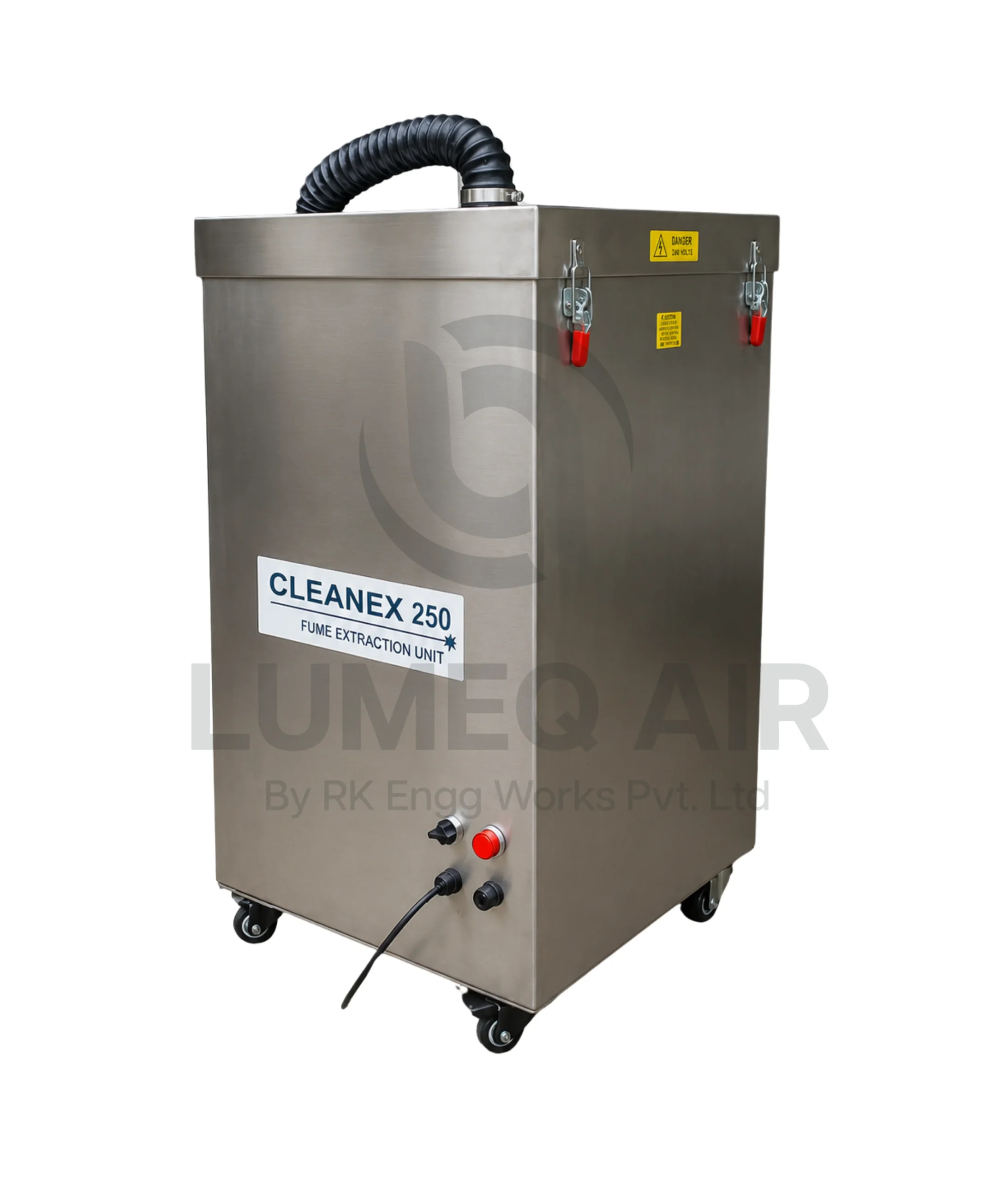

LUMEQ AIR Portable Fume Extractors, manufactured by R.K. ENGG. WORKS PVT. LTD., are compact mobile air filtration systems designed to capture hazardous fumes, smoke, and airborne contaminants directly at the source. Equipped with a 4-stage filtration system including Pre Filter, HEPA Filter, Activated Charcoal Filter, and Spark Arrestor, these units provide efficient air purification for welding, soldering, laser marking, and industrial fabrication applications. Available in single-arm and double-arm configurations as per operational requirements.

Process Flow

  1. Contaminated fumes are captured through extraction arms.
  2. Polluted air enters the filtration chamber.
  3. Spark Arrestor captures hot particles and sparks.
  4. Pre Filter removes larger dust particles.
  5. HEPA and Charcoal filters purify fine fumes and odors.
  6. Clean filtered air is discharged safely.

Technical Specifications

Parameter Specification
Type Dry fume extraction and filtration unit
Airflow Capacity (CMH) 800 - 2000
Static Pressure (Pa) 1200 – 2500
Fume Capture Method Suction arm/ hose/hood
Filtration Stages Multi-stage (Pre/Charcoal/HEPA/Spark Arrestor)
Filtration Efficiency Up to 99.99%
Motor Power (HP) 0.5 – 3
Mounting Type Portable
Application Multi-purpose

APPLICATION
